Railway infrastructure is an incredibly complex industry where accuracy is vital. Rail surveys must be completed under high-pressure conditions in short time frames to ensure that projects can move forward on schedule.
At Baypoint Surveys, we understand the entire project lifecycle, using the latest technology and survey techniques to deliver reliable results.
Our Railway Survey Services
We support projects across residential, commercial, civil, and infrastructure sectors.
Topographical
Surveys
Used for platforms, tunnels, rail features, ditches, embankments, cuttings and site drainage.
Infrastructure
Surveys
Detailed 3D surveys for bridge and road refurbishment or replacements.
Track
Surveys

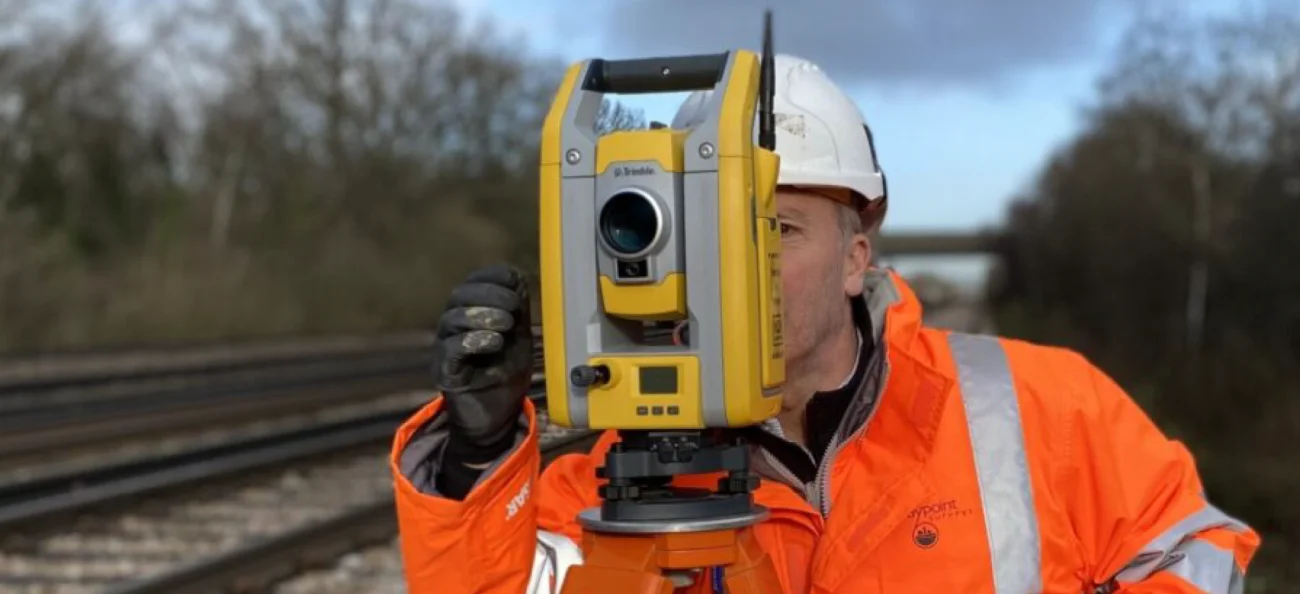

Conducted with Track Trollies and Laser scanners.
Height Gauge
Surveys
Assessing structure clearance for rail vehicle height and loading requirements.
Structural
Elevation
Capturing elevation data of walls, platforms, and built structures.
Ditch
Surveys
Mapping ditch locations, depths, and gradients.
Monitoring
Surveys
Measuring and tracking changes to structures, embankments and cuttings.
Setting Out
Services
Precise marking to support site engineering and construction works.
Who Uses Rail Surveys?
Designers
Main Contractors
Network Rails
Support your rail projects with accurate surveys. Reach out to our Baypoint Surveys team today.
Survey duration depends on track length, equipment required, and the scope of the survey, whether it’s for design, construction, or maintenance purposes.
Survey results are typically provided in 2D DWG and PDF formats, including detailed plans, profiles, and cross-sections. We can also supply data in other formats to suit your project needs, just let us know your preferences.
A stagger survey is used in rail surveying to measure the horizontal offset between the two rails at set intervals. It helps assess track alignment, monitor wear, and ensure the rails remain within safe operating limits.
Absolutely. We’re experienced in managing access restrictions, whether on live railways, within tunnels, near residential areas like a house backing onto the line, or in complex environments such as the London Underground.
Why Baypoint Surveys Stands Out
Proven Experience
Fully qualified with over 35 years of experience in the rail industry.
Client Protection
Your project is backed by comprehensive Professional Indemnity Insurance.
Versatile Capability
Our team is comfortable working in varied and complex environments.
Trusted Accreditations
We hold both RISQS and Achilles accreditations, ensuring compliance with safety standards.
Secure Site Experience
We’ve delivered work on NHS, Network Rail, and other high-security projects.
Industry Connections
We’ve built strong relationships with numerous companies in this sector.
TEC have worked with Baypoint over a number of years and have maintained a great working relationship with them. Their staff are great and always respond promptly!
Over the years we have found Baypoint to be extremely accommodating, professional and willing to assist us, providing additional advice whenever needed.
We wouldn’t hesitate to recommend them!”
We’ve been using Baypoint for the last 5 years and I can only say positive things about my experience with them. Everyone in the team is fantastic. They always turn up when they say will, are great to have on site and make the job look easy! I never hesitate to recommend them and are the only surveyors I will use.
Baypoint Surveys Ltd have supported us with the provision of topographical surveys for a vast range of railway projects.
Projects have included bridge replacement, strengthening and refurbishment schemes as well various rail structures.
We are grateful for their flexibility to resource emergency works and last-minute changes in track access.
We look forward to continuing our working relationship.
Baypoint have provided an exceptional service for us across our sites over the past two years. They have shown tenacity in their approach, and their ability to work through challenges with us, going above and beyond to ensure a high-quality service and output. Their team is approachable, friendly and overall, a joy to work with.
Choose Baypoint Surveys for UK Transport Projects
At Baypoint Surveys, you can trust our team to deliver high-quality survey services no matter your project. Use our accurate rail survey data to identify issues and develop unique solutions. Contact our team today to learn more.
